Description

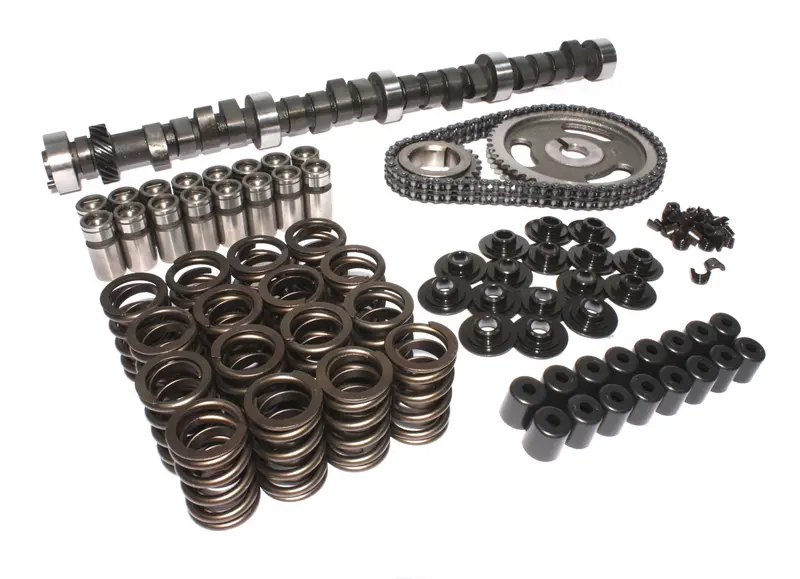

K-KIT – Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.
Resources
Installation Instructions
Resources
Installation Instructions
Specifications:
| Advertised Exhaust Duration | 280 |
| Advertised Intake Duration | 274 |
| Amazon ASIN | B001R98GPY |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 2,200-6,200 |
| C.A.R.B. E.O. Number | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | N/A |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type | Solid Flat Tappet |
| Camshaft Material | Cast Iron |
| Camshaft Series | Xtreme Energy |
| Description_ASM | Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440 |
| Description_DEF | Engine Camshaft Kit |
| Description_DES | 10 Superlock Steel Retainer Set of 16 for 1.500″-1.550″ OD Valve Spring |
| Description_DES | Engine Valve Spring Kit |
| Description_DES | Magnum Double Row Timing Set for Single-Bolt ’56-’79 Chrysler 383-440 |
| Description_DES | Set of 16 – 10 Degree, 3/8″, 2 and 4 Groove Locks for Chrysler |
| Description_DES | Set of 16 PTFE Valve Seals for .530″ Guide Size, 3/8″ Valve Stem |
| Description_DES | Solid Lifter Set for Chrysler 273-360, 383-440/426 HEMI |
| Description_DES | Xtreme Energy 236/242 Solid Flat Cam Cam K-Kit for Chrysler 383-440 |
| Description_DES | Xtreme Energy 236/242 Solid Flat Cam for Chrysler 383-440 |
| Description_EXT | Serious street/strip, 9.5:1 compression with 2800+ stall. Strong mid-range. |
| Description_INV | XE 236/242 S-Flt Cam K-Kit Chrys 383-440 |
| Description_KEY | 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_MKT | K-KIT – Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions. |
| Description_SHO | Engine Camshaft Kit |
| Description_SHP | None |
| Engine Family | Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
| Exhaust Duration at .050 inch Lift | 242 |
| Exhaust Valve Lift | 0.511 |
| Gaskets Included | No |
| height | 5.0 |
| Intake Duration at .050 Inch Lift | 236 |
| Intake Valve Lift | 0.502 |
| Kit Type | K-Kit – Complete Kit |
| length | 25.5 |
| Lifter Type | Solid Flat Tappet |
| Lifters Included | Yes |
| Lobe Separation | 110 |
| LTL | N |
| Title | Xtreme Energy 236/242 Solid Flat Cam Cam K-Kit for Chrysler 383-440 |
| Usage | Street/Performance |
| Valve Springs Included | Yes |
| weight | 27.0 |
| width | 10.25 |
